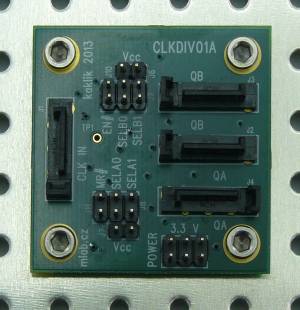

Differential input Clock divider CLKDIV01A

Multiple division ratios can be selected by jumpers. Possible division ratios are: (÷1, ÷2, ÷4, ÷8) or (÷2, ÷4, ÷8, ÷16) every output is synchronous each other. The common enable (EN) is synchronous so that the internal dividers will only be enabled/disabled when the internal clock is already in the LOW state.
