Digitální planetárium Stellarium

Ovládání dalekohledu

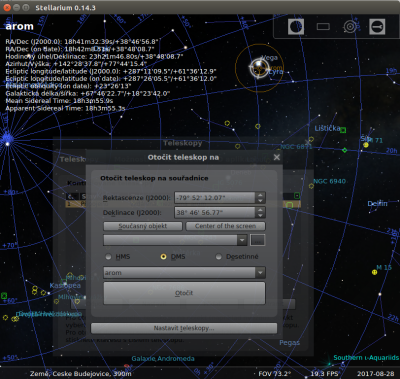

Stellarium obsahuje rozšíření, které slouží k ovládání GoTo dalekohledů. Pro použítí s AROMem existuje AROM nod mount_stellarium, který ROS zprávy se souřadnicemi dalekohledu přeposílá do Stellaria, kde se na hvězdné mapě zobrazuje záměrný terčík.

Protokol

Kommunikace mezi Stellariem a mount_stellarium nodem probíhá pomocí TCP/IP protokolu. RA/DEC souřadnice dalekohledu jsou ve zprávě zakódovány takto:

-----------------------
server->client:
MessageCurrentPosition (type = 0):

LENGTH (2 bytes,integer): length of the message
TYPE   (2 bytes,integer): 0
TIME   (8 bytes,integer): current time on the server computer in microseconds
         since 1970.01.01 UT. Currently unused.
RA     (4 bytes,unsigned integer): right ascension of the telescope (J2000)
         a value of 0x100000000 = 0x0 means 24h=0h,
         a value of 0x80000000 means 12h
DEC    (4 bytes,signed integer): declination of the telescope (J2000)
         a value of -0x40000000 means -90degrees,
         a value of 0x0 means 0degrees,
         a value of 0x40000000 means 90degrees
STATUS (4 bytes,signed integer): status of the telescope, currently unused.
         status=0 means ok, status<0 means some error


---------------------
client->server:
MessageGoto (type =0)
LENGTH (2 bytes,integer): length of the message
TYPE   (2 bytes,integer): 0
TIME   (8 bytes,integer): current time on the client computer in microseconds
                since 1970.01.01 UT. Currently unused.
RA     (4 bytes,unsigned integer): right ascension of the telescope (J2000)
         a value of 0x100000000 = 0x0 means 24h=0h,
         a value of 0x80000000 means 12h
DEC    (4 bytes,signed integer): declination of the telescope (J2000)
         a value of -0x40000000 means -90degrees,
         a value of 0x0 means 0degrees,
         a value of 0x40000000 means 90degrees

Zdroj free-astro.org

Protokol je dobře popsán na stránce yoestuve.es, kde je i Python příklad implementace.
